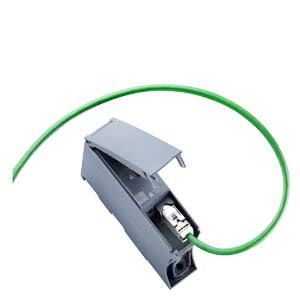

SIMATIC S7-1500 CP 1543-1
| product type designation | CP 1543-1 | |
| transfer rate | ||
| transfer rate | ||
| at the 1st interface | 10 ... 1000 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 1 | |
| number of electrical connections | ||
| at the 1st interface / according to Industrial Ethernet | 1 | |
| type of electrical connection | ||
| at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / 1 / from backplane bus | 15 V | |
| relative symmetrical tolerance / at DC | ||
| at 15 V | 3 % | |
| consumed current | ||
| from backplane bus / at DC / at 15 V / typical | 0.35 A | |
| power loss [W] | 5.3 W | |
| ambient conditions | ||
| ambient temperature | ||
| for vertical installation / during operation | 0 ... 40 °C | |
| for horizontally arranged busbars / during operation | 0 ... 60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| module format | Compact module S7-1500 single width | |
| width | 35 mm | |
| height | 142 mm | |
| depth | 129 mm | |
| net weight | 0.35 kg | |
| fastening method | ||
| S7-1500 rail mounting | Yes | |
| product features, product functions, product components / general | ||
| number of units | ||
| per CPU / maximum | 8 | |
| note | depending on CPU type | |
| performance data / open communication | ||
| number of possible connections / for open communication | ||
| by means of T blocks / maximum | 118; depending on the system upper limit | |
| data volume | ||
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte | |
| number of Multicast stations | 118 | |
| performance data / S7 communication | ||
| number of possible connections / for S7 communication | ||
| maximum | 118; depending on the system upper limit | |
| performance data / multi-protocol mode | ||
| number of active connections / with multi-protocol mode | 118 | |
| performance data / IT functions | ||
| number of possible connections | ||
| as client / by means of FTP / maximum | 32 | |
| as server / by means of FTP / maximum | 16 | |
| number of possible connections | ||
| as server / by means of HTTP / maximum | 4 | |
| as email client / maximum | 1 | |
| data volume / as user data for email / maximum | 64 Kibyte | |
| performance data / telecontrol | ||
| protocol / is supported | ||
| TCP/IP | Yes | |
| product functions / management, configuration, engineering | ||
| product function / MIB support | Yes | |
| protocol / is supported | ||
| SNMP v1 | Yes | |
| SNMP v3 | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| configuration software | ||
| required | STEP 7 Professional V14 (TIA Portal) or higher | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 | |
| product functions / diagnostics | ||
| product function / web-based diagnostics | Yes; via S7-1500 CPU | |
| product functions / routing | ||
| service / routing / note | IP routing up to 1 Mbps | |
| product function | ||
| static IP routing | Yes | |
| static IP routing IPv6 | No | |
| dynamic IP routing | No | |
| dynamic IP routing IPv6 | No | |
| protocol / is supported | ||
| RIP v1 | No | |
| RIPv2 | No | |
| RIPnG for IPv6 | No | |
| OSPFv2 | No | |
| OSPFv3 for IPv6 | No | |
| VRRP | No | |
| VRRP for IPv6 | No | |
| BGP | No | |
| PPP | No | |
| PPoE via DSL | No | |
| product functions / security | ||
| firewall version | stateful inspection | |
| product function / with VPN connection | IPSec | |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168, DES-56 | |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates | |
| type of hashing algorithms / with VPN connection | MD5, SHA-1, SHA-256, SHA-384, SHA-512 | |
| number of possible connections / with VPN connection | 16 | |
| product function | ||
| IEEE 802.1x (radius) | Yes | |
| password protection for Web applications | No | |
| ACL - IP-based | No | |
| ACL - IP-based for PLC/routing | No | |
| switch-off of non-required services | Yes | |
| blocking of communication via physical ports | No | |
| log file for unauthorized access | Yes | |
| product functions / time | ||
| product function / SICLOCK support | No | |
| product function / pass on time synchronization | Yes | |
| protocol / is supported | ||
| NTP | Yes | |
| standards, specifications, approvals | ||
| reference code | ||
| according to IEC 81346-2:2019 | KEC | |
| certificate of suitability / CE marking | Yes | |
| certificate of suitability / UKCA marking | ||
