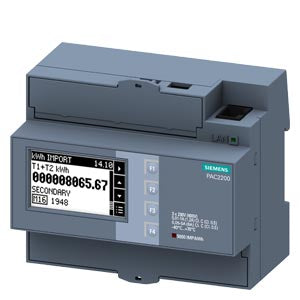

Siemens - 7KM2200-2EA30-1JA1
Siemens - 7KM2200-2EA30-1JA1
Regular price
€159,03 EUR
Regular price
Sale price
€159,03 EUR
Couldn't load pickup availability
Low stock: 2 left
SENTRON 7KM PAC 2200
| Model | ||
| product brand name | SENTRON | |
| product designation | Energy counter | |
| product quality calibrated | Yes | |
| type of measured value detection load profile | No | |
| type of signal | S0 | |
| design of the energy counter | Solid-state | |
| design of the pulse output | Electrical | |
| General technical data | ||
| type of the power supply network | three-wire/four-wire | |
| Supply voltage | ||
| operating voltage | ||
| between L and L minimum | 3 V | |
| between L and L maximum | 480 V | |
| between N and L minimum | 3 V | |
| between N and L maximum | 276 V | |
| Protection class | ||
| protection class IP | IP40 | |
| Main circuit | ||
| operating frequency rated value | ||
| minimum | 45 Hz | |
| maximum | 65 Hz | |
| operational current rated value | 5 A | |
| Suitability | ||
| suitability for use | Import/export | |
| Product details | ||
| special product feature | MID | |
| Product function | ||
| product function | apparent/active/reactive energy | |
| product function | ||
| backstop | Yes | |
| blocking code | Yes | |
| Display and operation | ||
| design of the display | LCD | |
| display version | digital | |
| Communication | ||
| protocol is supported | Modbus TCP | |
| Measuring inputs | ||
| measurable supply voltage | ||
| between (PE)N and L at AC maximum rated value | 230 V | |
| between the line conductors at AC maximum rated value | 400 V | |
| Number | ||
| number of characters that can be displayed | 12 | |
| Mechanical Design | ||
| number of modular width units | 6 | |
| fastening method | DIN rail device | |
| Net Weight | 420 g | |
| Environmental footprint | ||
| Environmental Product Declaration(EPD) | Yes | |
| global warming potential [CO2 eq] total | 123 kg | |
| global warming potential [CO2 eq] during manufacturing | 13.7 kg | |
| global warming potential [CO2 eq] during operation | 110 kg | |
| global warming potential [CO2 eq] after end of life | -1.21 kg | |
| Approvals Certificates | ||
